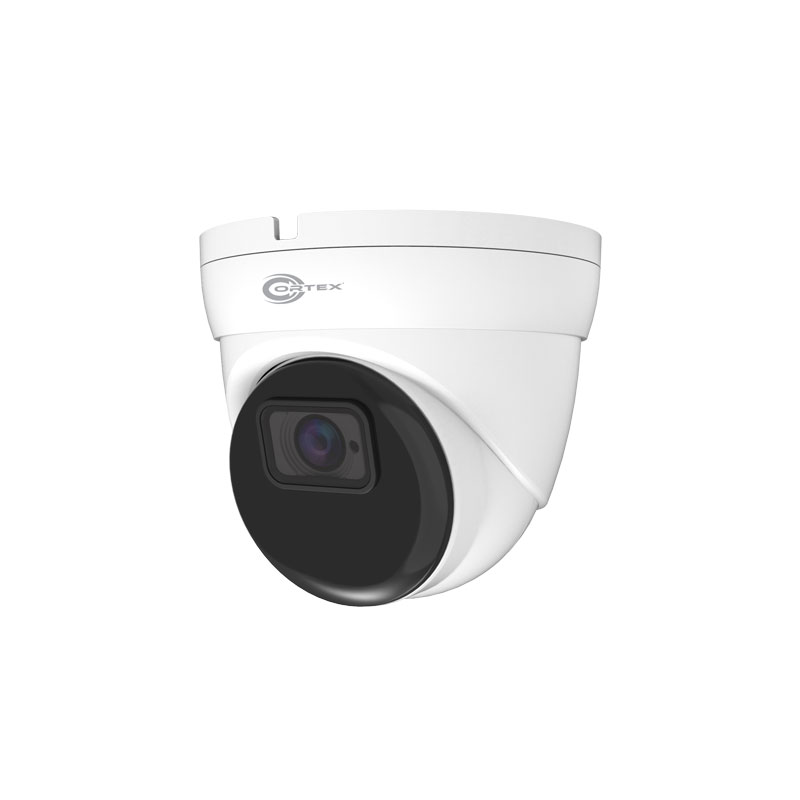

TURRET5-FRONT DOME

$0.22

Main Features

  • Premium Components
  • Cortex® Network Camera Advanced GUI1
  • Intelligent Analytics
  • Premium Components
  • 5MP 2592 (H) × 1944 (V) Resolution
  • 1/2.7″ Progressive CMOS
  • 2.8mm wide angle lens: H.FOV: 77°
  • Up to 100 feet (30m) IR Range
  • H.265 / H.264 Video Compression
  • Auto switching infrared-cut filter (OSD on/off)
  • Dual Video Streaming
  • Micro SD slot, up to 256GB
  • IEEE 802.3af / IEEE 802.3at | PoE
  • IP66 Waterproof Metal Turret Housing Casing
  • Eyeball design for easy adjustments on an aluminum based with ABS cover
  • IP5T with “RFE” for Fixed Lens Turret or “RVE” for Varifocal
SKU: TURRET5-FRONT DOME Category:

Description

  • Effective Pixels:5MP 2592(H)×1944(V)
  • Imaging Device: 1 / 2.7”
  • Scanning System: Progressive CMOS
  • Min. Illumination: Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
  • Focal Length : 2.8mm wide angle
  • Max. Aperture Ratio: F No. 1.6±5%
  • Lens Type: Fixed (M12)
  • Angular Field of View: Horizontal:81°, Vertical:57°, Diagonal:108°
  • Min. Object Distance: 2m)
  • IR Viewable Length: Up to 98 feet (30m)
  • Camera Title: On / Off
  • Day & Night:
    • IR cut filter with auto switch (Day / Night / Auto / Schedule)
  • Backlight Compensation : Off / On (5 Zone)
  • Wide Dynamic Range: DWDR
  • Digital Noise Reduction: 3D DNR
  • Motion Detection : Off / On (8 Level)
  • Privacy Masking: Off / On (4 Zone, Rectangle)
  • Gain Control: Auto
  • White Balance: Auto / Manual / Indoor
  • Electronic Shutter Speed: 1/5 ~ 1/20000s
  • Flip: / Mirror Flip / Rotation
  • On-Board Storage:Micro SD slot, up to 256GB
  • Audio: NA
  • Alarm: Yes
  • Hardware Reset: Yes
  • Ethernet: RJ45 (10 / 100BASE-T)
  • Video Compression Format: H.265 / H.264
  • Resolution:
    • Mainstream: 5MP(2592×1944),4MP(2592×1520)3MP(2304×1296),1080P(1920×1080)960P(1280×960),720P(1280×720)
    • Substeam:720P(1280×720),VGA(640×480),QVGA(320×240)
    • Mobilestream: VGA(640×480), QVGA (320×240)
  • Max. Framerate: 20fps
  • Video Quality Ajustment: 8Kbps ~ 8Mbps
  • Bitrate control method: CBR/VBR
  • Streaming Capability :Triple-Stream (Main / Sub / Mobile)
  • IP: IPv4
  • Image Settings:
    • Image rotate, Saturation, Contrast, Hue, Brightness, Sharpness
  • Protocols:
    • TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,HTTPS,FTP,
  • Security:
    • IP address filter;complicated,password;Authenticated username and password
  • Streaming Method: Unicast / Multicast
  • Max. User Access: Max 7 (admin+user)
  • Application Programming Interface: Open compatibility ( Profile S/G/T)
  • Web Viewer :
    • IE8,9,10,11, Chrome 44/lower, Firefox 51 /lower, Safari 11/ lower
  • Illumination: DragonFire® 1pc LEDs
  • PoE: Yes, IEEE 802.3af / IEEE 802.3at
  • Ingress Protection: Metal Housing IP66 Waterproof
  • Color / Material: White / Metal
  • Input Voltage / Current: D12V /POE(IEEE802.3af)
  • Power Consumption: 3.6W
  • Storage Conditions: -30~+60°C (-22~+140°F) less than ≤ 95% RH
  • Operating Conditions: -30~+55°C (-22~+131°F) ) less than ≤ 95% RH
  • Dimension:135 x 135 x 120 mm (5.3 x 5.3 x 4.7 inches)
  • Weight:Approximately 474g (1.04 lbs)
