Description
| Category | Specification |
|---|
| Brand | Huawei |

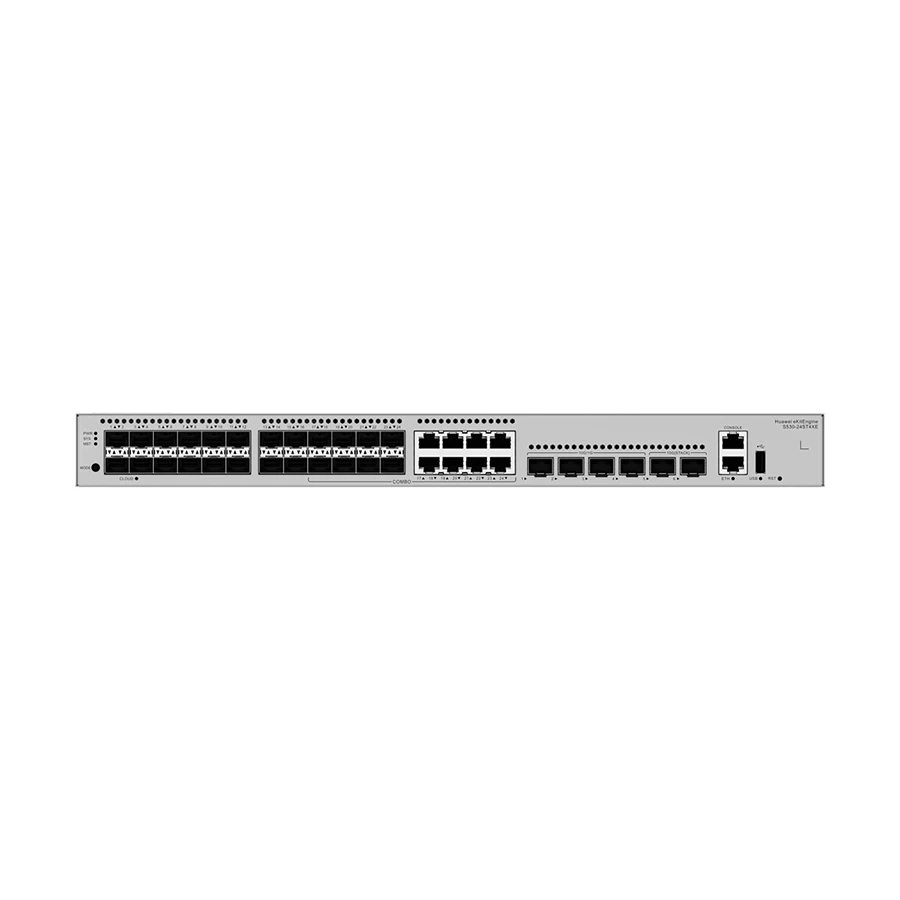

| Model | Huawei S530-24ST4XE |
| Type | Network Switch |
| Ports & Slots |
| – Number of Total Port | 38 Ports |
| – Gigabit Port | 32 |
| – SFP Port | 8 |
| – SFP+ Port | 4 |
| Technical Info |
| – PoE | No |
| – Manageability | Managed |
| – Interface(s) | 24 x 10/100/1000 Mbps Ethernet, 8 x Gigabit Combo RJ45 or SFP, 4 x 10GE SFP+, 2 x 12GE Stack Ports |
| – Data Transfer Rate | 10/100/1000 Mbps |
| – Memory | 2 GB |
| – MTBF | 982,054 Hours |
| Physical Description |
| – Body Material | Metal |
| – Body Color | Gray |
| – Form Factor | 1U Rack-mountable |
| – Dimension (mm) | 185.0 x 650.0 x 550.0 |
| – Weight | 7.4 kg |
| Power |
| – Approx. Power Consumption | 31.6 W |
| Warranty |
| – Warranty Details | 3 Year (Without Adapter) |
| Additional Info |
| – Typical Heat Dissipation | 107.82 BTU/hour |
| – Static Power Consumption | 14 W |
| – MTTR | 2 hours |
| – Availability | > 0.99999 |
| – Noise (acoustic power) | 38.1 dB(A) |
| – Noise (acoustic pressure) | 26.1 dB(A) |
| – Operating Temperature | -5°C to +50°C |
| – Storage Temperature | -40°C to +70°C |
| – Rated Input Voltage | AC input: 100 V AC to 240 V AC, 50/60 Hz; High-voltage DC input: 240 V DC; DC input: -48 V DC to -60 V DC |
| – Input Voltage Range | AC input: 90 V AC to 290 V AC, 45-65 Hz; High-voltage DC input: 190 V DC to 290 V DC; DC input: -38.4 V DC to -72 V DC |
| – Flash Memory Physical Space | 1 GB |
| – Console Port | RJ45 |
| – Certification | EMC certification, Safety certification, Manufacturing certification |
