Description

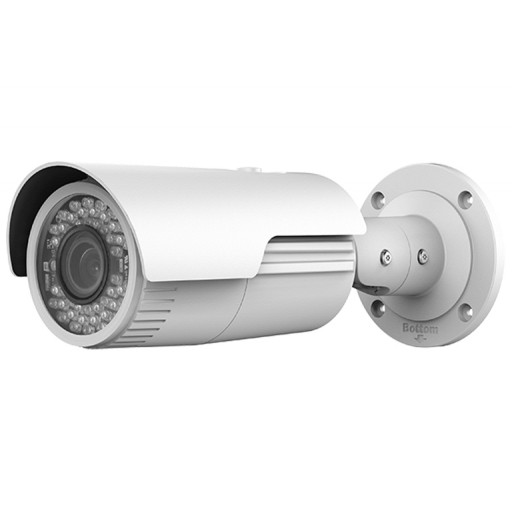

The Hikvision HiWatch IPC-B620-V is a 2MP metal varifocal bullet camera with a motorized lens and a range of features such as dual streaming, day and night function, digital wide dynamic range, power over ethernet for quick and easy installation, an IP67 rated housing to protect the camera from outdoor weather conditions. This camera also has a built-in Micro SD/SDHC/SDXC card slot for up to 128 GB of on-board Edge recording.
Part of an HiWatch Easy IP Solution
The Hikvision HiWatch IPC-B620-V Network camera is part of the HiWatch Easy IP solution, boasting Easy Installation and Easy Viewing with the combination of HiWatch Plug & Play NVR and video surveillance software. Installation is a simple 2-step process that’s even easier than Analog – plug the camera into the NVRs PoE port, then connect the monitor and you’re ready to enjoy HD video recording instantly. This camera is plug n play compatible with all HiWatch & all Hikvision NVR’s.
Remote Monitoring
Connection to the internet is a breeze with the Hik-Connect Setup without any technical or port forwarding knowledge or expertise required. FREE iPhone, iPad, Android, PC & MAC remote viewing software (iVMS 4200 & Hik-Connect)
Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination: | | | Color: 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8 mm to 12 mm @F1.4 , horizontal field of view: 100°to 35° |
| Lens Mount: | | | φ14 |
| Adjustment Range: | | | Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264+/H.264/MJPEG |
| H.264 code profile: | | | Baseline profile/Main profile |
| Video bit rate: | | | 32Kbps~8Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps @( 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream: | | | 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Image Settings: | | | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
| BLC: | | | Support |
| Day/Night Switch: | | | Support auto, scheduled |
| Network | ||
| Alarm Trigger: | | | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP,
IGMP, |
| General Function: | | | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Output: | | | 1Vp-p Composite Output (75 Ω, BNC) |
| Reset Button: | | | Yes |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | | | 12 VDC, 0.5 A, Max. 6 W PoE (802.3af, 37 V to 57 V), 0.13 A to 0.2 A, Max. 7.5 W |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 30m |
| Dimensions: | | | 95.2 mm × 105 mm × 279.2 mm (3.75″ × 4.13″ × 10.99″) |
| Weight: | | | 1200 g (2.6 lb.) |
