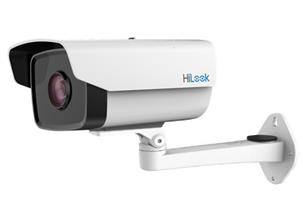

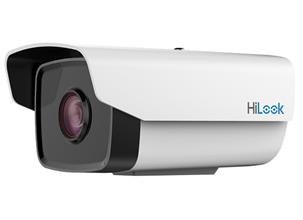

HiWatch IPC-B220-D 2.0 MP ICR Network Bullet Camera

  •  1/2.8″ progressive scan CMOS
  • Up to 2.0 megapixel high resolution
  • Up to 30 m IR distance
  • Dual stream
  • Digital wide dynamic range
  • 3D DNR (Digital Noise Reduction)
  • IP67
  • Mobile monitoring via mobile application
SKU: IPC-B220 -D Categories: , ,

Description

Specifications & Technical Details

Camera
Image Sensor: | 1/2.8″ Progressive Scan CMOS
Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter time: | 1/3 s to 1/100,000 s
Slow shutter: | Support
Lens: | 4 mm, horizontal field of view: 83° (6 mm: 55°optional)
Lens Mount: | M12
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | Digital WDR
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG
H.264 code profile: | Baseline profile/Main profile
Video bit rate: | 32Kbps~8Mbps
Dual Stream: | Yes
Max. Image Resolution: | 1920 x 1080
Frame Rate: | 50Hz: 25fps @( 1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: | 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240)
Image Settings: | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
BLC: | Support
Day/Night Switch: | Support auto, scheduled, and triggered by alarm input
Network
Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,

 SMTP, SNMP, IGMP,
802.1X, QoS, IPv6, Bonjour
General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
Interface
Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: | 12 V DC ± 25%
Power Consumption: | 12 VDC, 0.38 A, Max. 4.5 W
Weather Proof: | IP67
IR Range: | Up to 30m
Dimensions: | 147.5 mm × 78.2 mm × 92.9 mm (5.8″ × 3.1″ × 3.7″)
Weight: | Approx. 350g (0.8 lb)
